Multiple and synchronous operation of this equipment by external event input

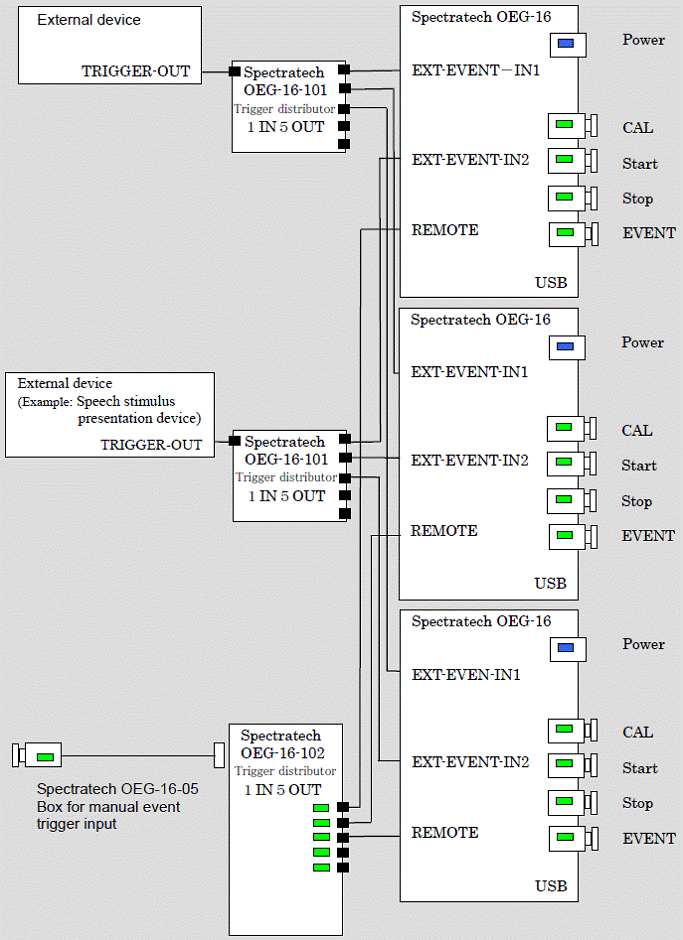

When it operates multiple OEG-16 units by one trigger factor/event factor, the following connection can be configured using the optional Spectratech OEG-16-101 and Spectratech OEG-16-102. Though the figure shows a simultaneous connection chart for up to 5 units, operation by 6 units or more is possible by cascading Spectratech OEG-16-101 and 102.
